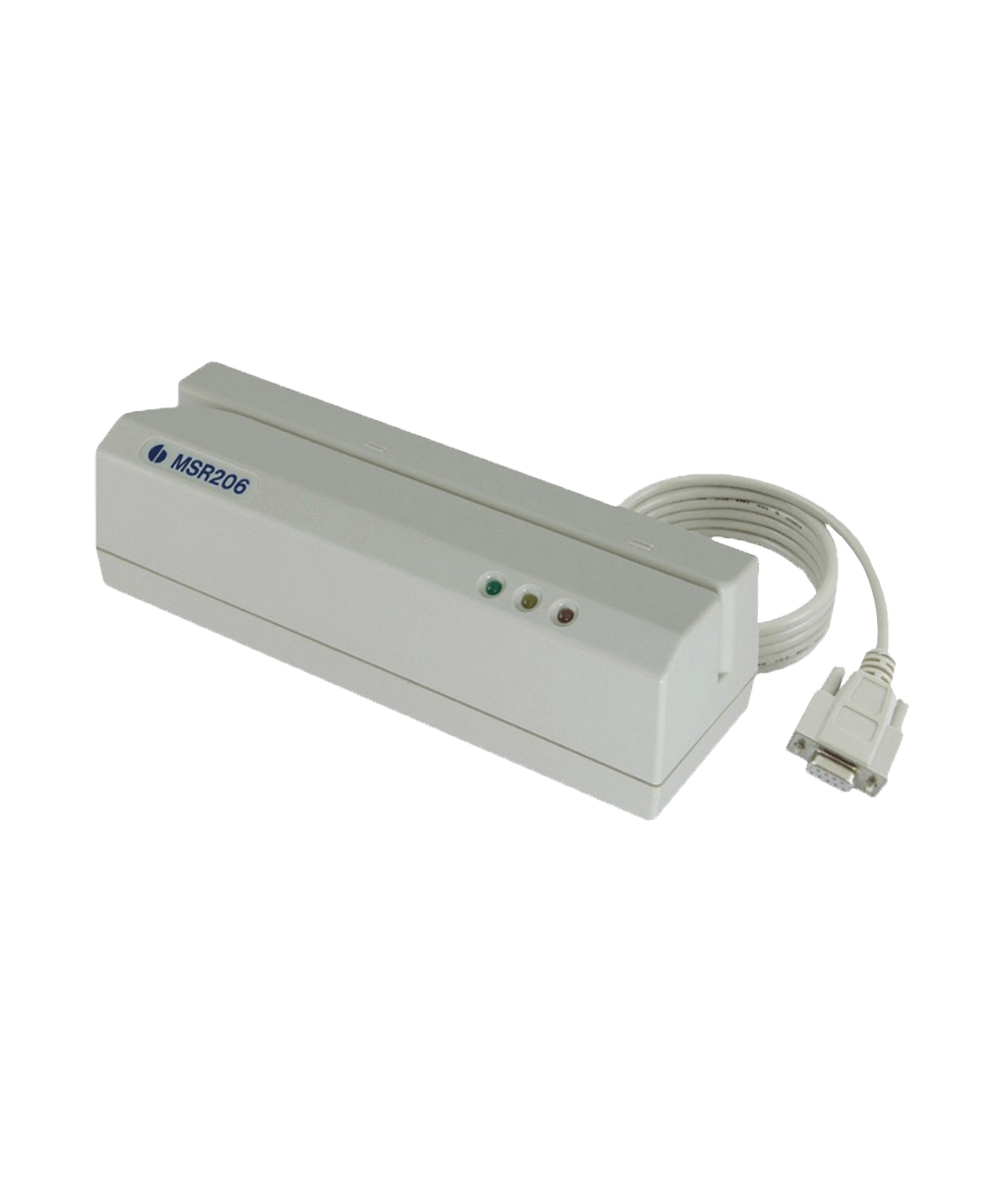

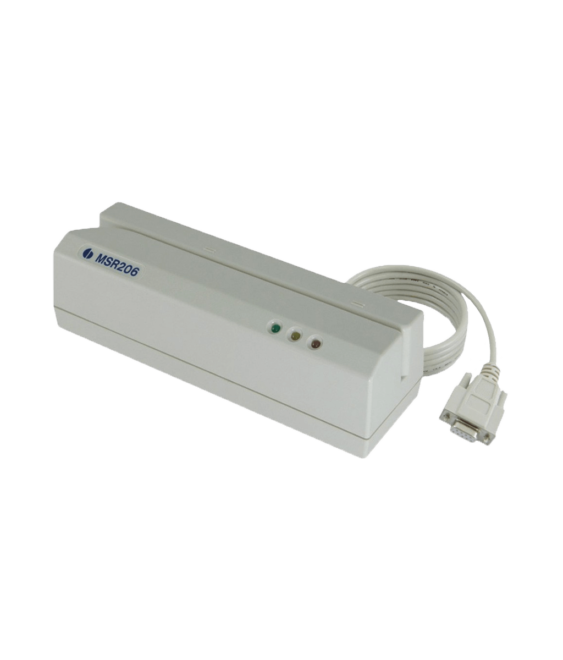

- Hi-Low Co Magnetic Card Reader/Writer.
- Power: 24VDC 2.5A
- Output Baud Rate: 9600, 8 bit Character, Non-Parity
- RS232/USB Two in one connectivity.
- Dimensions: 212mm (L) x 55.5mm (H) x 59mm (W)
- Card Density: Encoding/Decoding : 75~210 BPI
- Configurations: Single Track : Track 1,2 or 3, JIS-II
Dual Track : Track 1&2 or 2&3, Tripe Track : Track 1&2&3
- Encoding Energy: 300 Oersted
- Recording Capability:
Track 1 (TATA) : 79 characters
Track 2 (ABA) : 40 characters
Track 3 (THRIFT) : 107 characters
JIS-II : 69 characters
- One Million passé Media life.
