Auto-ID & Security

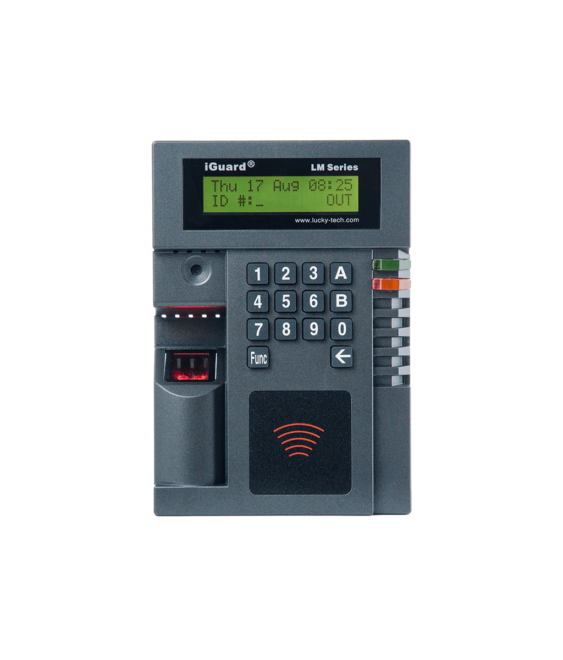

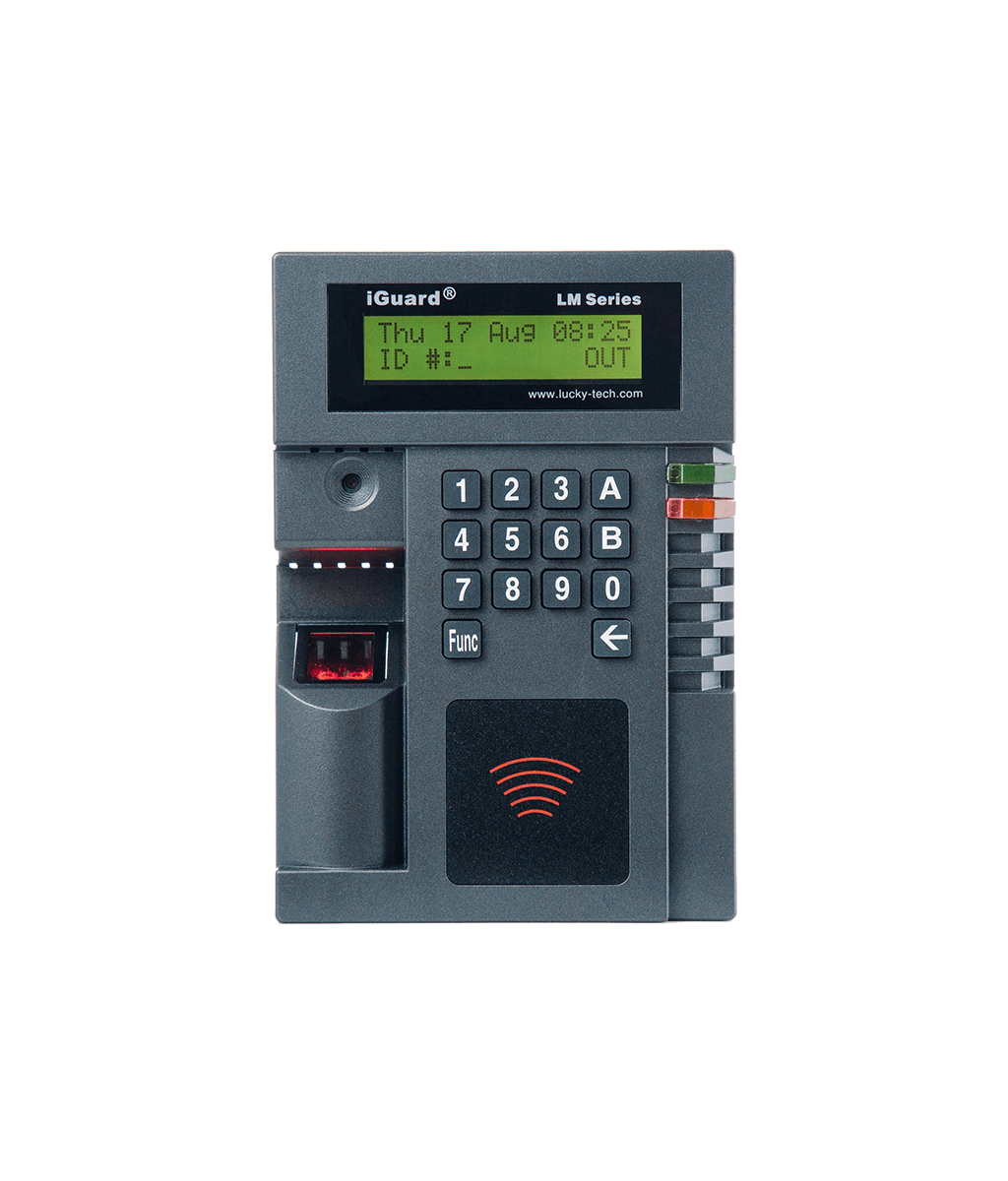

iGuard is an Access Control and Time & Attendance device which uses Biometirc Fingerprint and/or Smart Card to authenticate employees with taking Snapshots (optional).
It connects directly to the Internet, and work seamlessly with iGuardPayroll

  • Access Control/Time Attendance recorder.
  • Biometric Fingerprint & Contactless smart card authentication.
  • Embedded Web server (TCP/IP) and Database server.
  • Embedded software using any Web browser.
  • Multi-reports: Access Log, Attendance report, Daily In/OUT and Time card reports.
  • Multiple verification methods: Fingerprint, smart card or password.
  • Easy integration with existing payroll software.
  • Send access logs to iGuardPayroll cloud server in real-time
  • Auto data synchronization among multiple units with master / slave configuration
  • Total no. of users: 1000.
  • transaction records stored: 20,000.
  • SecuGen Optical fingerprint sensor.
  • Built-in camera to take Snapshots (optional)
  • Verification time < 1sec.
  • False rejection rate < 1%
  • Interface: Ethernet (100Base-T), WiFi (optional)
  • LCD display: 20×2 with backlight.
  • External Controls: Door Switch, Alarm, Door Status
  • Power : 12VDC, 700mA. Using Power Adapter: 12V/3A
  • Dimensions: 105mm(W) x 40mm(D) x 150(H)
