Barcode Scanners

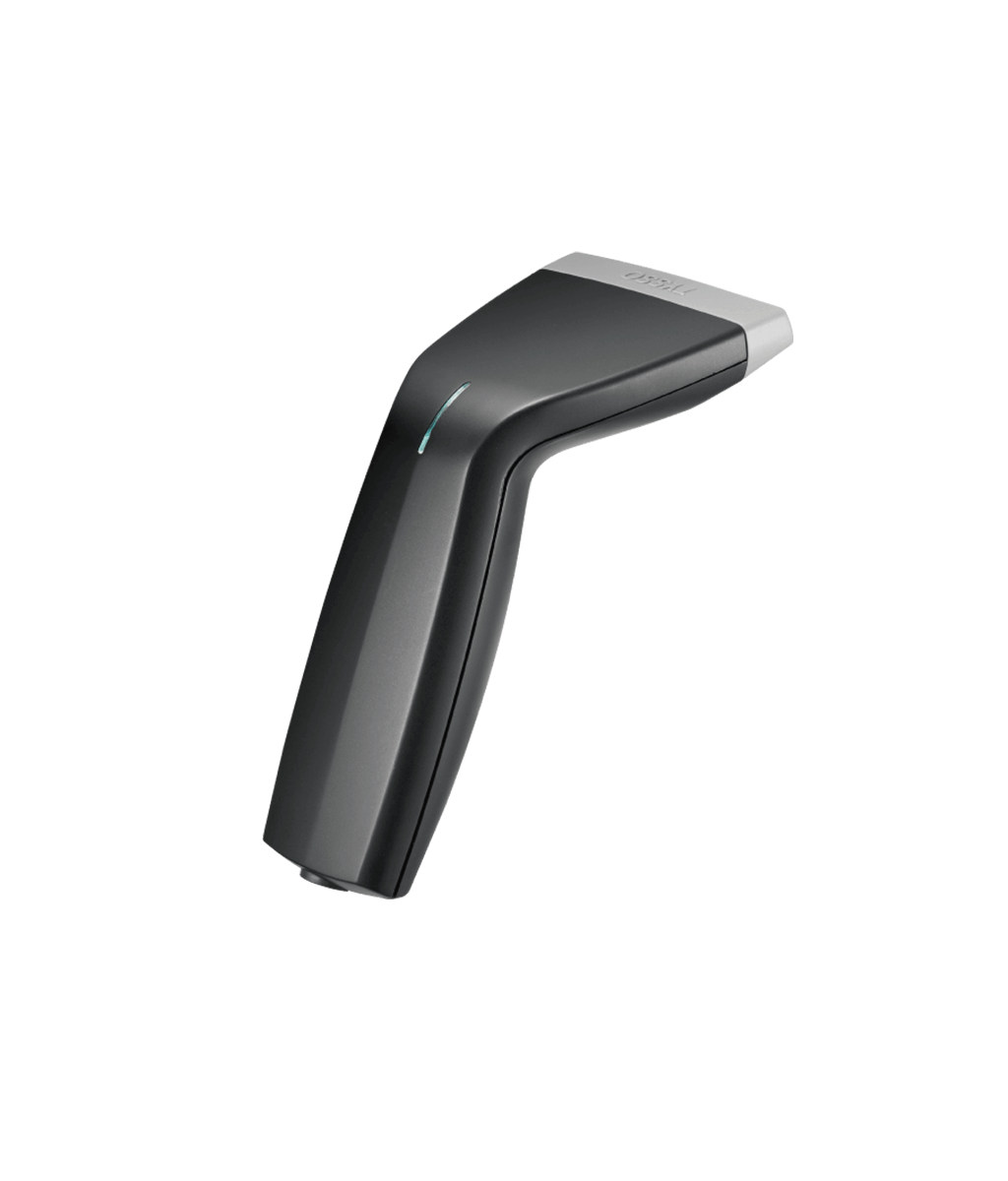

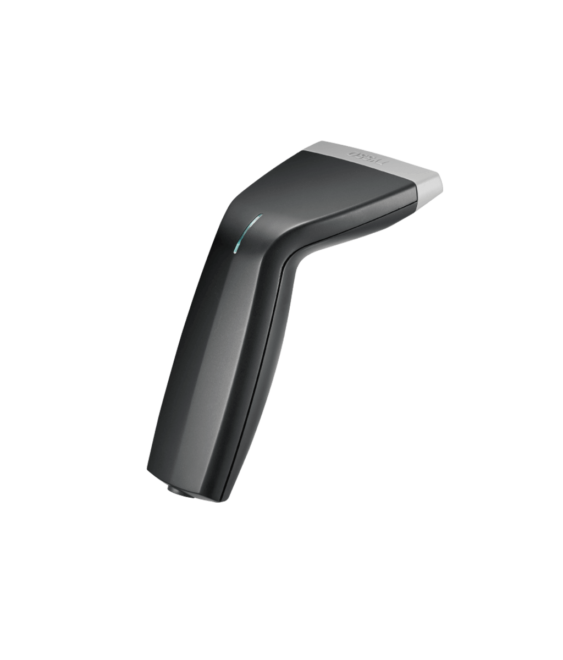

CS-1800

Light-weight, High-speed, High-resolution CCD barcode scanner.

Category
  • CCD Contact type scanner.
  • Interface: Keyboard, RS232, USB
  • Barcodes: 1D readable.
  • Sensor: 1500 Pixel linear CCD.
  • Width Of Field: up to 80mm
  • Reading Distance: up to 50mm
  • Light Source : Yellow LED 590nm
  • Resolution : 0.1mm (4mil)
  • Power : DC +5V ±5%; Current 130mA
  • Scan Rate: 360 scan/sec
  • Ambient light: 4500 Lux
  • Housing Material: ABS Plastic & Rubber
  • Cable : Straight 180cm, RJ45 Connector
  • Weight : Approx. 155g
  • Colors: Black or white.
